Technical parameters

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

Light Source

Light source: Philips MSD Silver 380 EC

Ballast: Electronic Ballast

Color Temperature: 7500K

Lifetime: 1500H

Power Supply

Voltage: AC90-240V 50/60Hz

Power: 650W

Optics

Lens: Anti-reflective coated glass lens

Focus: Linear Motorized focus

Dimmer: 0-100% linear dimming

Beam Angle: 2.2-54 degrees

Feature

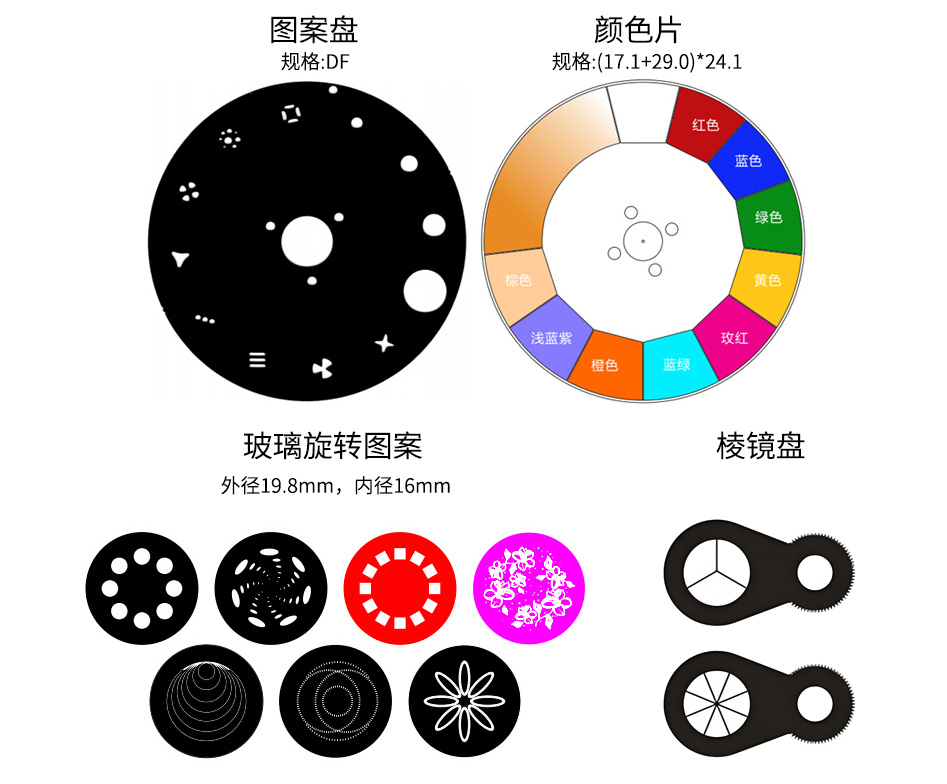

Color Wheel: 9 colors + linear CTO+white, color fine tuning, rotation with variable direction and speed,with rainbow effect

1 Fixed Gobo Wheel: 11 gobos+white

1 Rotation Gobo Wheel: 7 glass gobos + white, wheel rotation and shake

Prism: 3 facet prism and 8 facet prism, bi-directional rotation at variable speeds

Frost effect+CTO effect

Strobe: 0-20 times/second

Motor: 3 phase motor

Fan with speed control board, can effectively reduce noise, protect the light. With folding clamps

Control

Control Signal: DMX 512

Control Channel: 22CH

Control Mode: International standard DMX 512, Master/slave, Auto run, sound active.

LCD display, DMX 3 pin or 5 pin locking XLR signal input

Working Environment

Working Temperature: -30-40 degree

Cooling System: No noise fan

IP Grade: IP20

Package

N.W.: 19.15kg

G.W.: 21.65kg

Carton Packing Size: 480*410*590mm

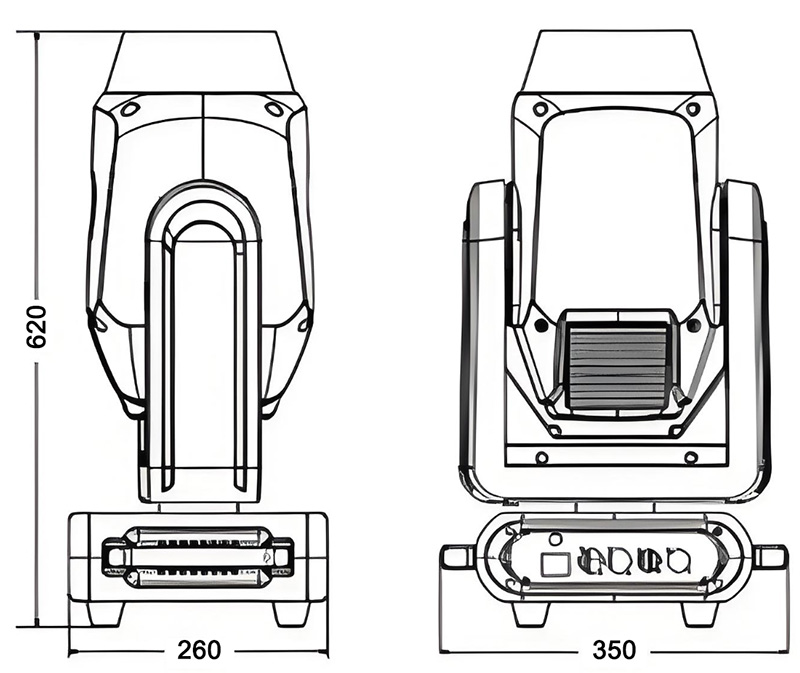

Dimensional drawings

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

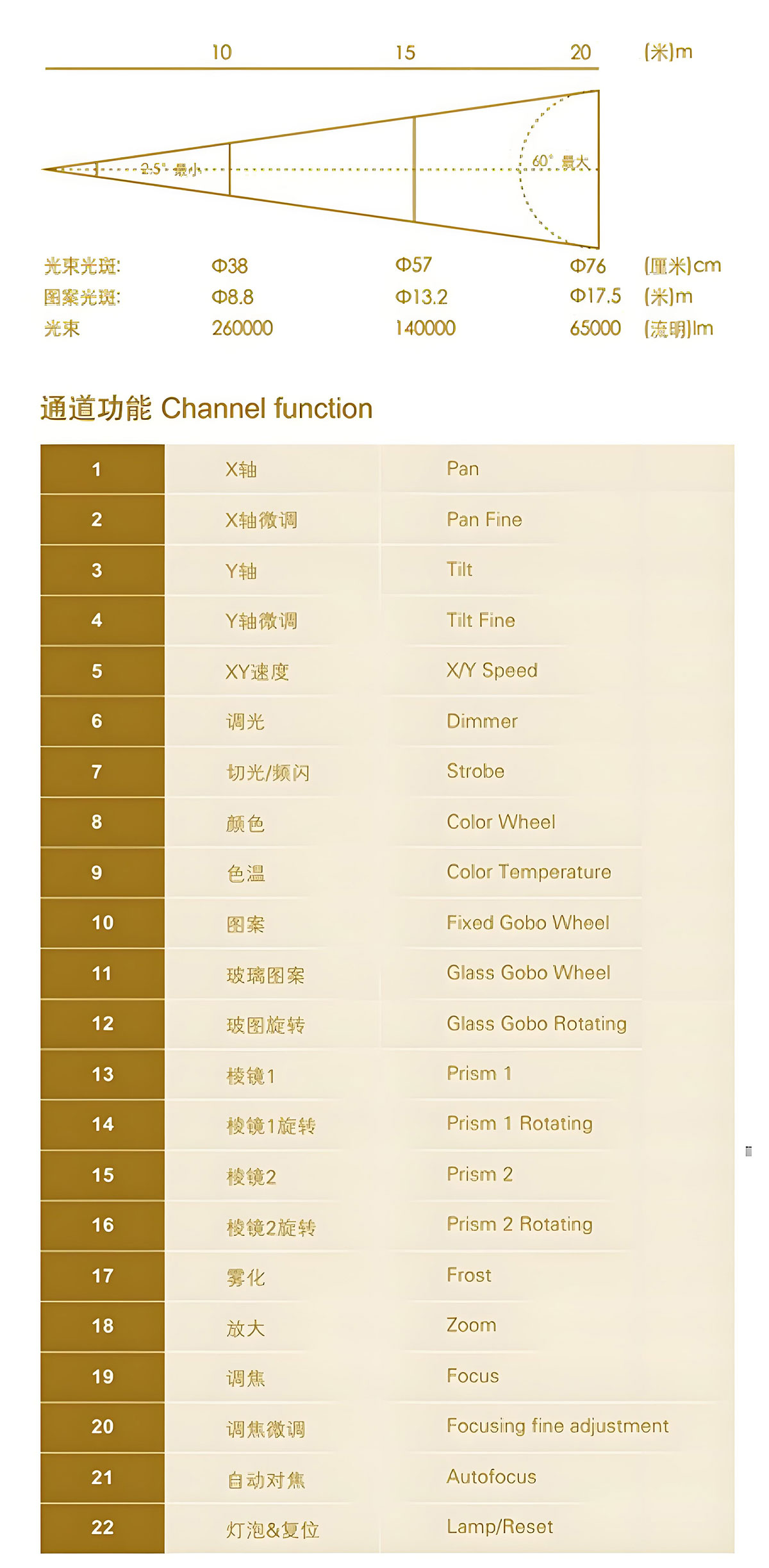

Illuminance diagram

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

Effect

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
