Technical parameters

____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

Light Source

Light source: Osram Sirius HRI  382W

Ballast: Electronic Ballast

Color Temperature: 7500K

Lifetime: 3000H

Power Supply

Voltage: AC90-250V 50/60Hz

Power: 650W

Optics

Lens: Anti-reflective coated glass lens

Focus: Linear Motorized focus

Dimmer: 0-100% linear dimming

Beam Angle: 2 degree

Feature

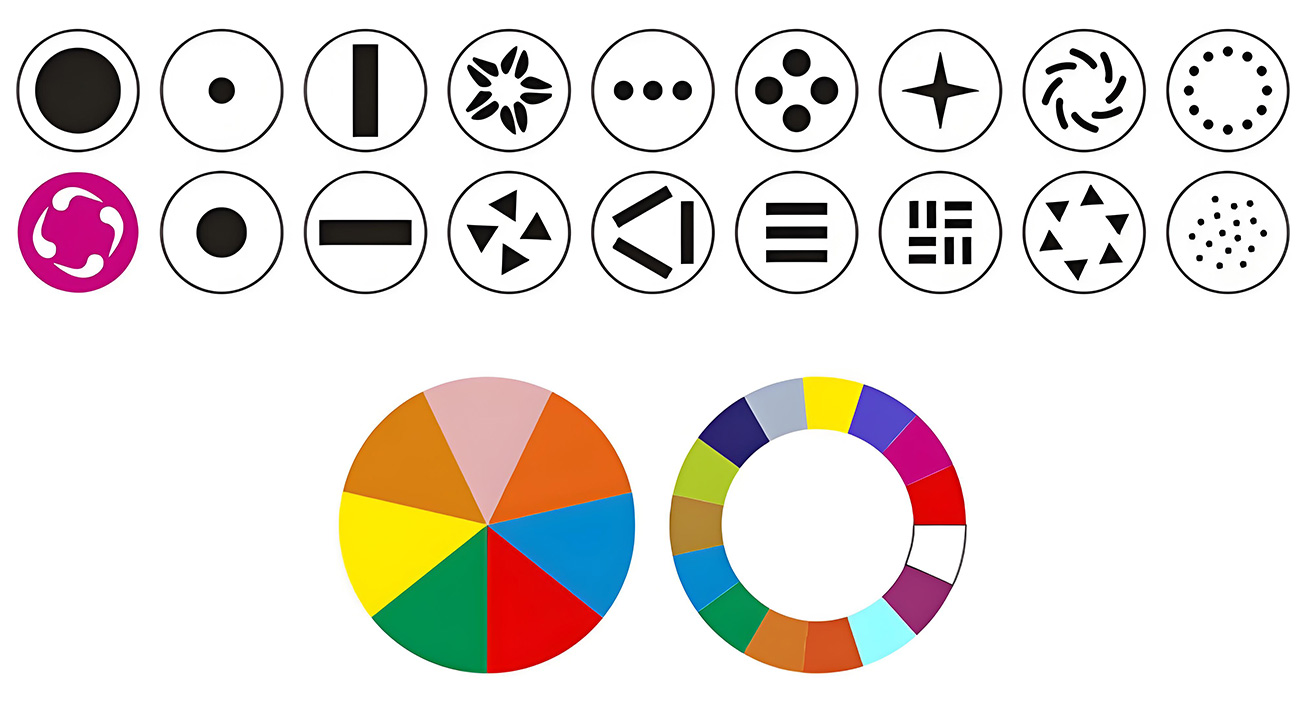

Color Wheel: 13 colors +white, color fine tuning, rotation with variable direction and speed,with rainbow effect

1 Rotation Gobo Wheel: 17 gobos + white, wheel rotation and shake,

Prism: 16 facet prism and 16+8 facet Prism, bi-directional rotatable at variable speeds

Frost effect+Rainbow effect

Strobe: 0-20 times/second

Motor: 3 phase motor

Fan with speed control board, can effectively reduce noise, protect the light

With folding clamps

Control

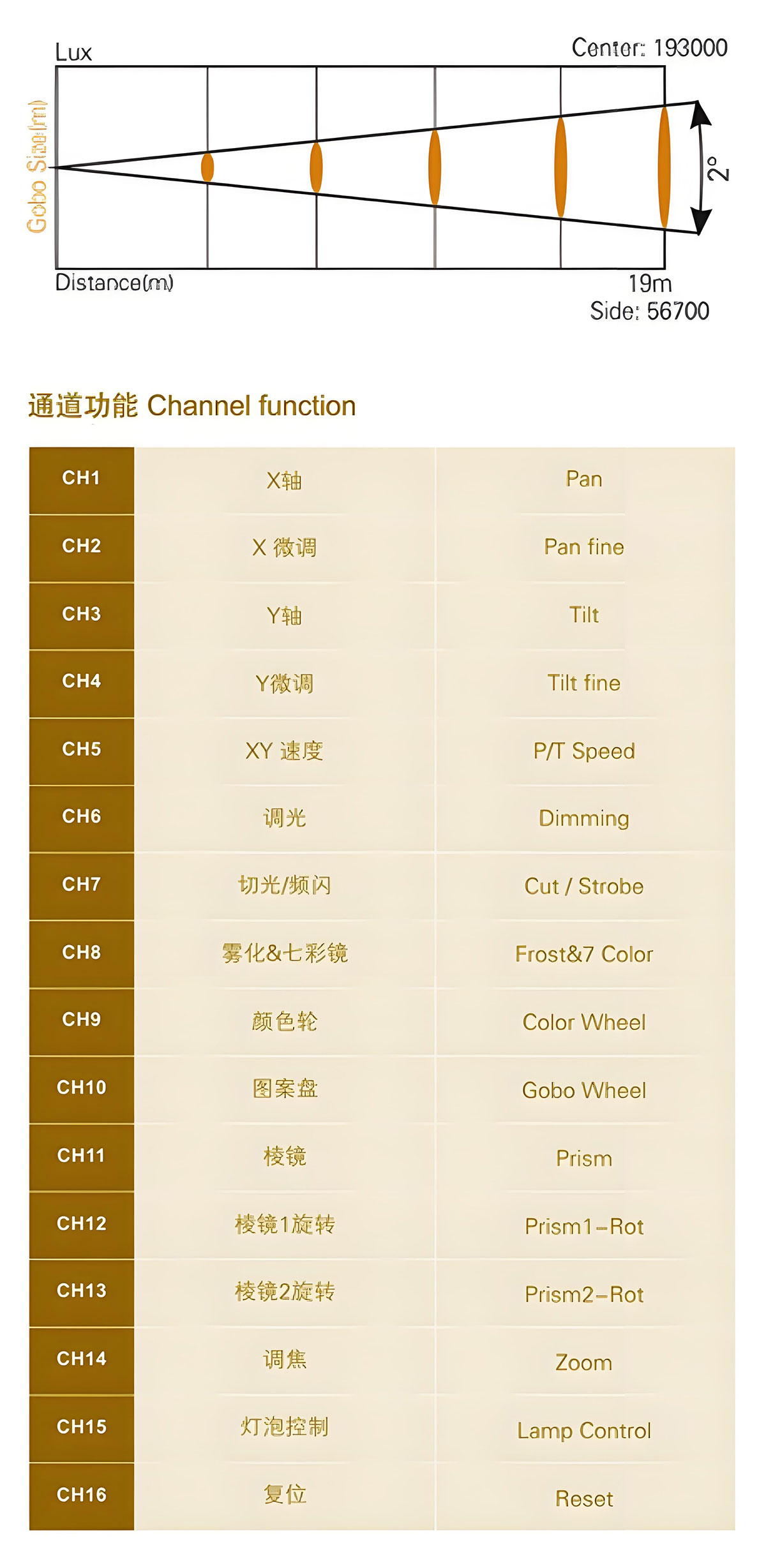

Control signal: DMX 512

Control Channel: 16CH

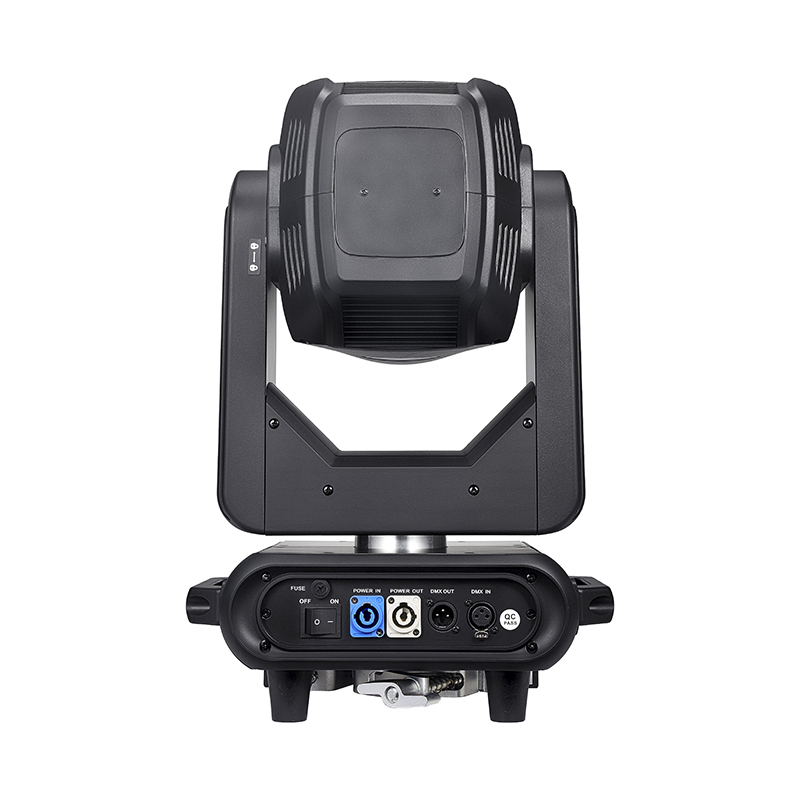

Control Mode: International standard DMX 512, Master/slave, Auto run, sound active. LCD display, DMX 3 pin or 5 pin locking XLR signal input

Working Environment

Working Temperature: -30-40 degree

Cooling System: No noise fan

IP Grade: IP20

Package

N.W.: 20kg

G.W.: 22kg

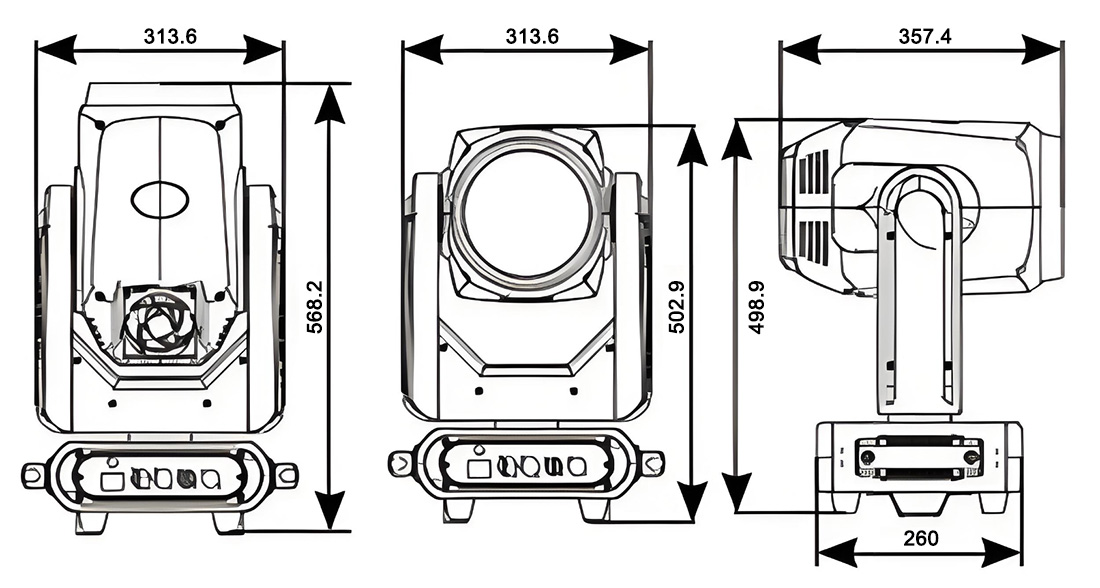

Carton Packing Size: 480*410*590mm
